Description

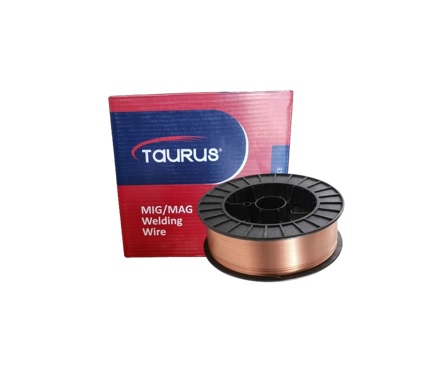

TAURUS MIG ER70S-6
The TAURUS ER70S-6 MIG wire is produced from high quality de-oxidised rod. The products are copper coated for increased shelf life, which facilitates good electrical conductivity with reduced friction during high speed welding. The TAURUS ER70S-6 MIG wire is a premium quality wire which is precision layer-wound to produce positive, uninterrupted feeding in semi-automatic and automated systems.
SOME FEATURES AND BENEFITS
- Good electrical conductivity.
- Precision layer-wound premium quality wire.
- Lloyds register of shipping grade DXVud, BF, 2S, 2YS, H15.
WELDING PROCEDURE
The TAURUS ER70S-6 MIG wire is suitable for dip (short arc), spray arc and pulsed-arc transfer welding using CO2 and Argon based shielding gases.
WELDING POSITIONS
- Downhand
- Horizontal flat
- Horizontal vertical
- Vertical up
- Overhead
CLASSIFICATIONS
- AWS A5.18 ER 70s-6
- SABS 145 Grade A
- EN ISO 14341 G42 2 C G4Si1
- EN ISO 636-A W 42 3 W4Si1
- EN ISO 636-B W 49 3 W4Si1
APPROVALS
- Lloyds register of shipping grade DXVud, BF, 2S, 2YS, H15
- American Bureau of shipping grade 2SA TUV
| COMPOSITION | VALUE |
| Carbon | 0.07 – 0.15 % |
| Manganese | 1.4 – 1.85 % |
| Silicon | 0.8 – 1.15 % |
| Sulphur | 0.035 % Max |
| Phosphorous | 0.03 % Max |
| Copper | Typical 0.18 % 0.4 % Max |
| MECHANICAL ( with CO₂ ) | AS WELDED |
| 0.2% Proof stress | 430 MPa min |
| Tensile strength | 510 – 570 MPa |
| Elongation on 50mm | 26 min |
| Charpy V-Notch at +20°C | 110 J min |
| Charpy V-Notch at 0°C | 80 J min |
| Charpy V-Notch at -20°C | 47 J min |
AVAILABLE IN
- 0.6mm – 5kg spool
- 0.8mm – 5kg /15kg spool
- 0.9mm – 1kg / 15kg spool
- 1.0mm – 15kg spool
- 1.2mm – 15kg spool
- 1.6mm – 15kg spool
