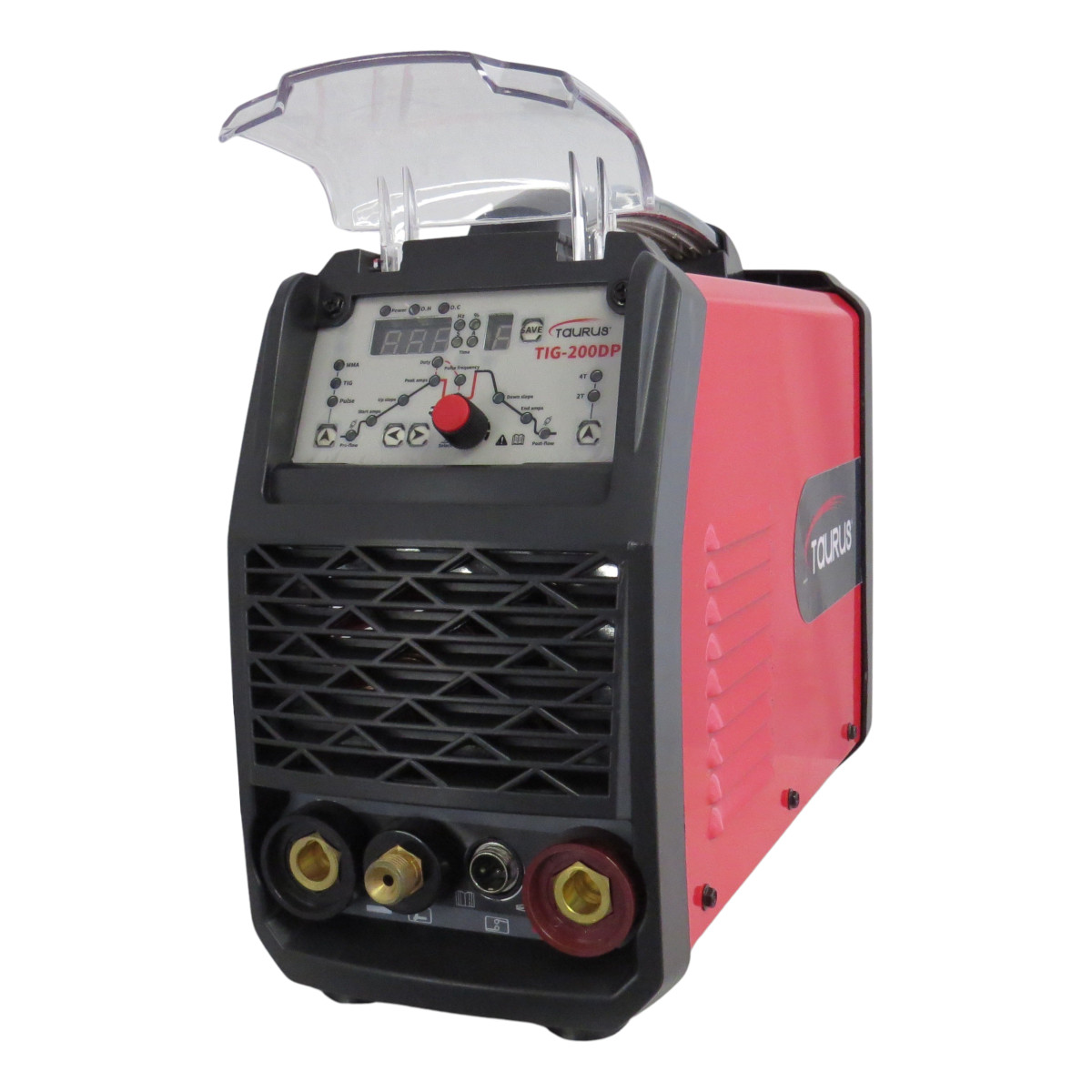

TAURUS TIG DC 200A PULSE

R11685,00

PRODUCT CODE : TA-TIG200DC-HF-P

MODEL: TA-TIG200DC-HF-P

RATED POWER SUPPLY INPUT FOR TIG: 220V SINGLE PHASE

DUTY CYCLE 40°C @ 10 MINUTES: 60% @ 200A ▪ 100% @ 155A

OPEN CIRCUIT VOLTAGE: 62V

WELDING CURRENT RANGE: 20 – 200A

DIMENSIONS(mm) AND NET WEIGHT(kg): 320 x 160 x 300mm, 8kg

SKU: TA-TIG200DC-HF-P Category: Tags: , ,

Description

The Taurus TIG DC 200A PULSE inverter is a robust, generator friendly machine designed and manufactured for operation under demanding industrial conditions. The advanced power input system will detect and handle a voltage drop or a spike of up to 25%. This will not only safeguard the machine against damage resulting from erratic power supply, but will also ensure smooth, uninterrupted operation. The two main built-in functions, pulse welds and high frequency ignition, ensure professional ease of welding and highquality welds. The pulse function facilitates control over the welding process and prevents burn-through on the workpiece. The high frequency ignition creates a very soft start arc and maximum arc control. This obviates the need to touch the workpiece with the tungsten electrode. Both functions have a great advantage when welding thin material.

SOME KEY FEATURES

• IGBT system.

• 25% Voltage fluctuation safeguard.

• Heavy duty.

• Soft, stable arc.

• High quality welds.

• LCD digital display.

• Pulse welding and high frequency ignition

ACCESSORIES

• Earth clamp cable kit.

• Electrode cable kit.

• TIG torch.

• Argon flowmeter.
