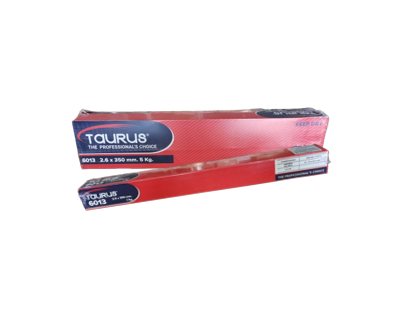

TAURUS PRO 6013 MILD STEEL ELECTRODES
TAURUS PRO E6013 is a rutile-cellulosic type stick electrode designed for a wide range of general fabrication applications for workshop and site conditions. Excellent operability in all positions including vertical down. Particularly suited where poor fit-up conditions prevail. Easy slag removal and low spatter loss. Weld bead appearance is smooth with a fine ripple formation.
SOME FEATURES AND BENEFITS
- Excellent weldability in all positions.
- Excellent strike and restrike characteristics.
- Easy slag removal.
- Low spatter.
- Smooth weld bead appearance and ripple formation.
WELDING POSITIONS
• Flat
• Horizontal
• Vertical up
• Vertical down
• Overhead
CLASSIFICATIONS
AWS A5.1 E 6013
DIN 1913 E 43 22 R(C)3
| COMPOSITION | % |
| Carbon | 0.06% |
| Manganese | 1.50% |
| Silicon | 0.30% |
| MECHANICAL | AS WELDED |
| Yield strength | >430 N/mm² |
| Tensile strength | 520-560 N/mm² |
| Elongation (5xd) | >25 % |
| Impact strength ISO-V@+20°C | 100 Joule |
| Impact strength ISO-V@0°C | 50 Joule |
