Description

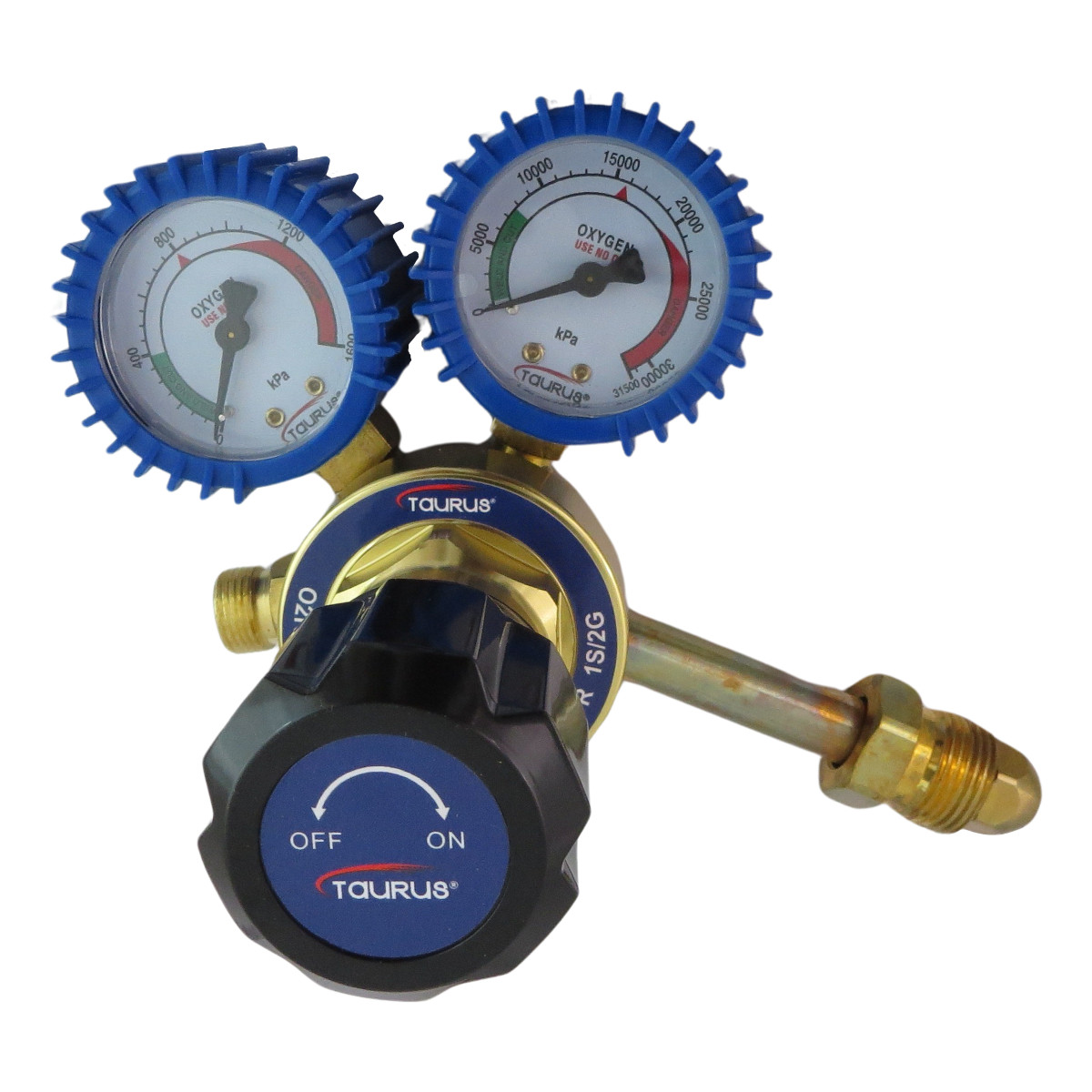

The primary function of a gas regulator is to reduce high pressure gas in a cylinder or process line to a lower, more usable level. A regulator is not a flow control device. It is used to control delivery pressure only. It has two gauges, one to measure the inlet pressure and the other to measure the outlet delivery pressure.
APPLICATIONS
• Medium-duty cutting, heating and welding.
FEATURES
• Sufficient flow for cutting up to 300mm steel.
• Smooth, high precision adjustment.
• Side inlet connection.
• Standard chromed gauges and brass body.
INLET SPECIFICATION
| DESCRIPTION | VALUE |
| MAXIMUM PRESSURE | 23000 kPa |
| PRESSURE GAUGE | 0 – 28000 kPa |
| CONNECTION | G 5/8″ B-rh |
OUTLET SPECIFICATION
| DESCRIPTION | VALUE |
| DELIVERY PRESSURE | 0 – 1000 kPa |
| PRESSURE GAUGE | 0 – 1100 kPa |
| MAXIMUM GAS FLOW | 155 m³/h |
| CONNECTION | 3/8″ rh |
